Fixed-dosing
With plastic chemical limiter

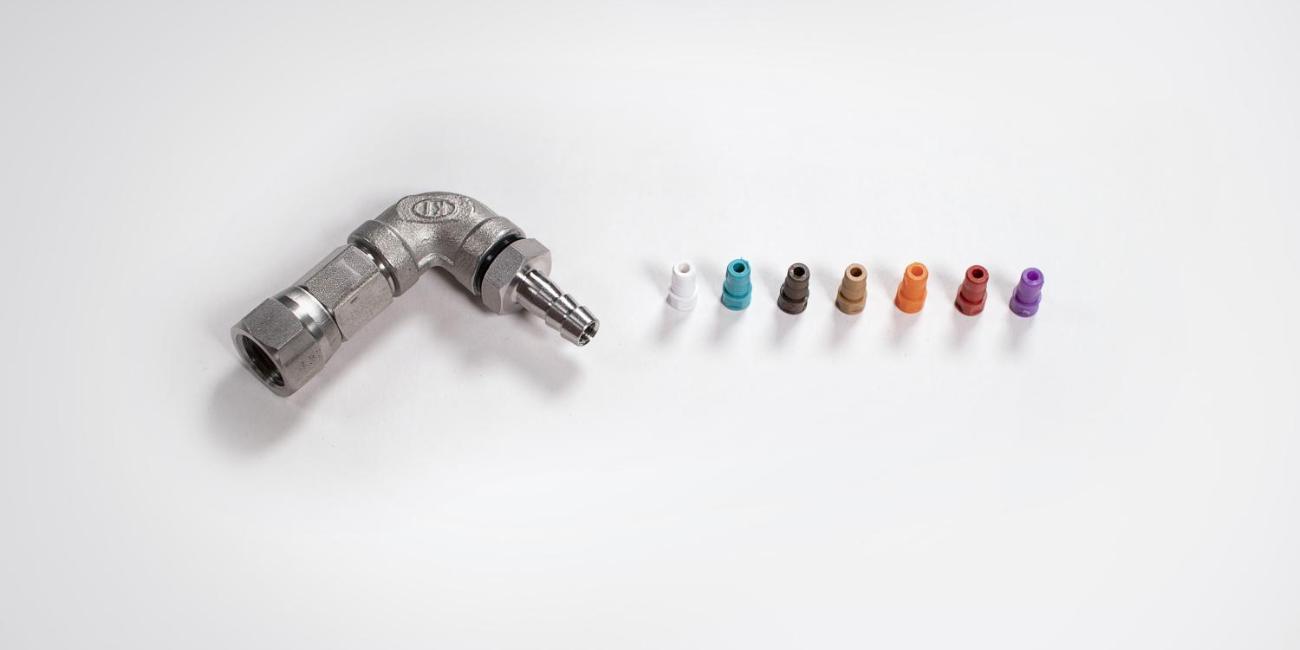

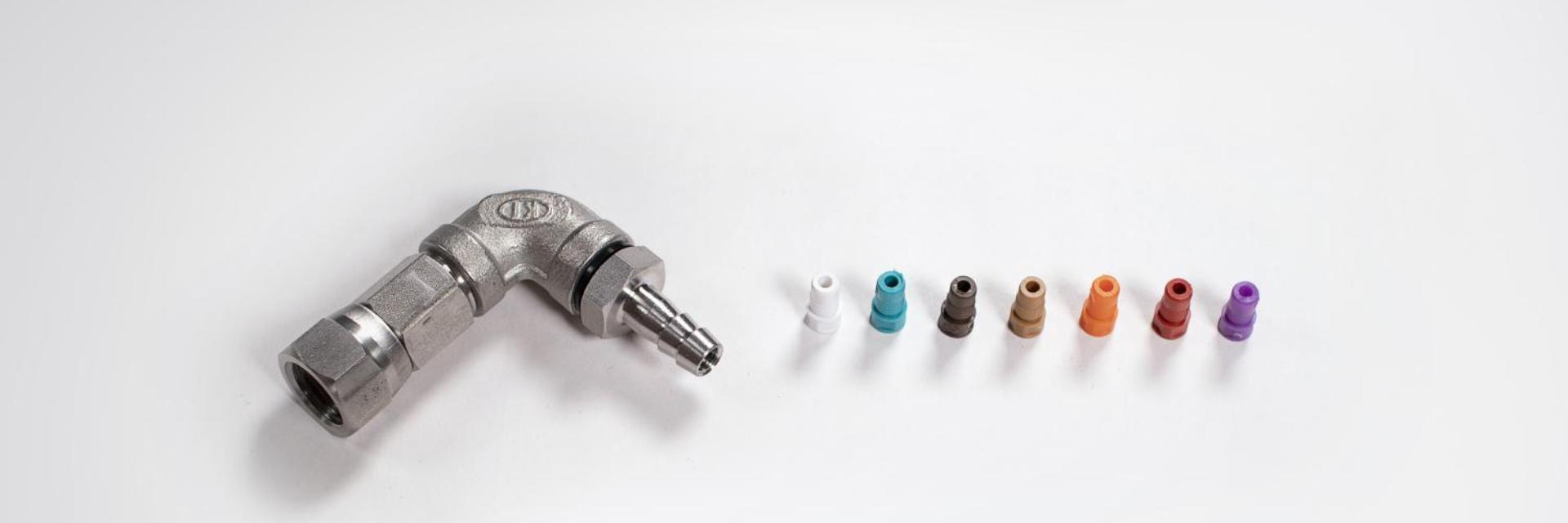

We have a wide range of chemical limiters in plastic (PVC) available.
| Colour | Dosage, guiding* | Orifice size |
| Purple | 0,8% | 0,36 mm |
| Blue | 1,3% | 0,46 mm |
| Dark brown | 1,7 % | 0,58 mm |
| Orange | 2-3% | 0,64 mm |
| Light brown | 3,7% | 0,89 mm |
| White | 5,3% | 1,09 mm |
| Red | 7,4% | 1,32 mm |
*The concentration is dependent on many factors such as product temperature , viscosity, density, pressure conditions, lenght of hose, air pressure etc.
Consequently the mentioned percentages in the tables above are only guiding.
We recommend that dosage is adjusted by your chemical supplier.
