Fixed-dosing

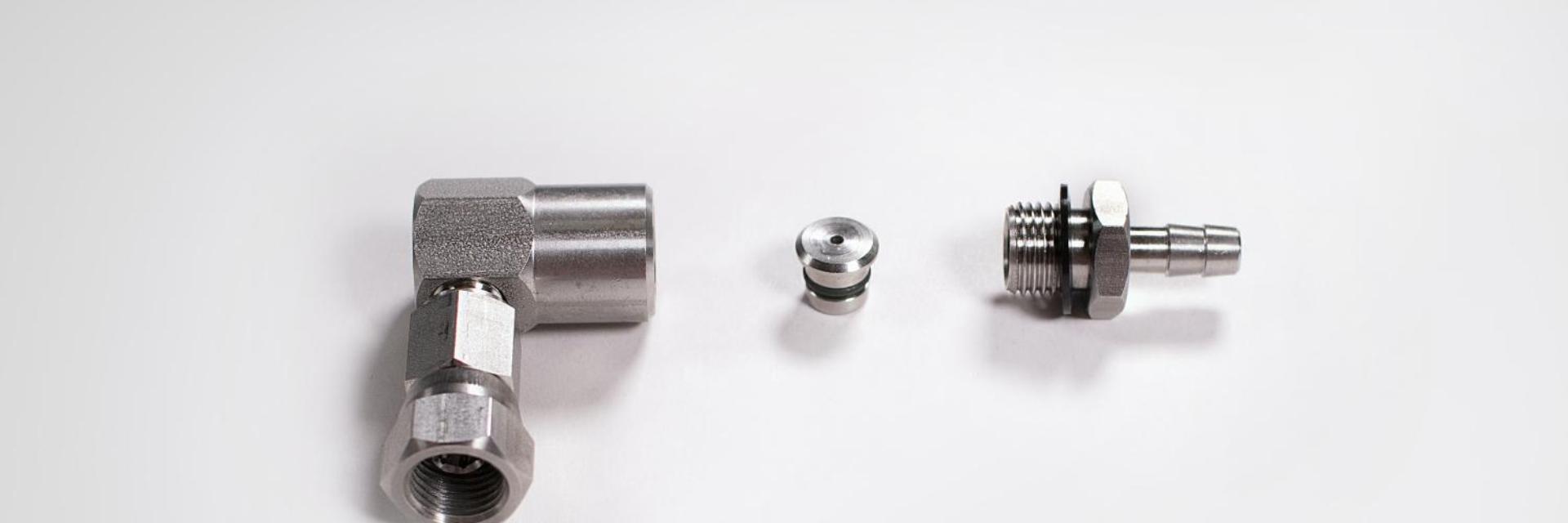

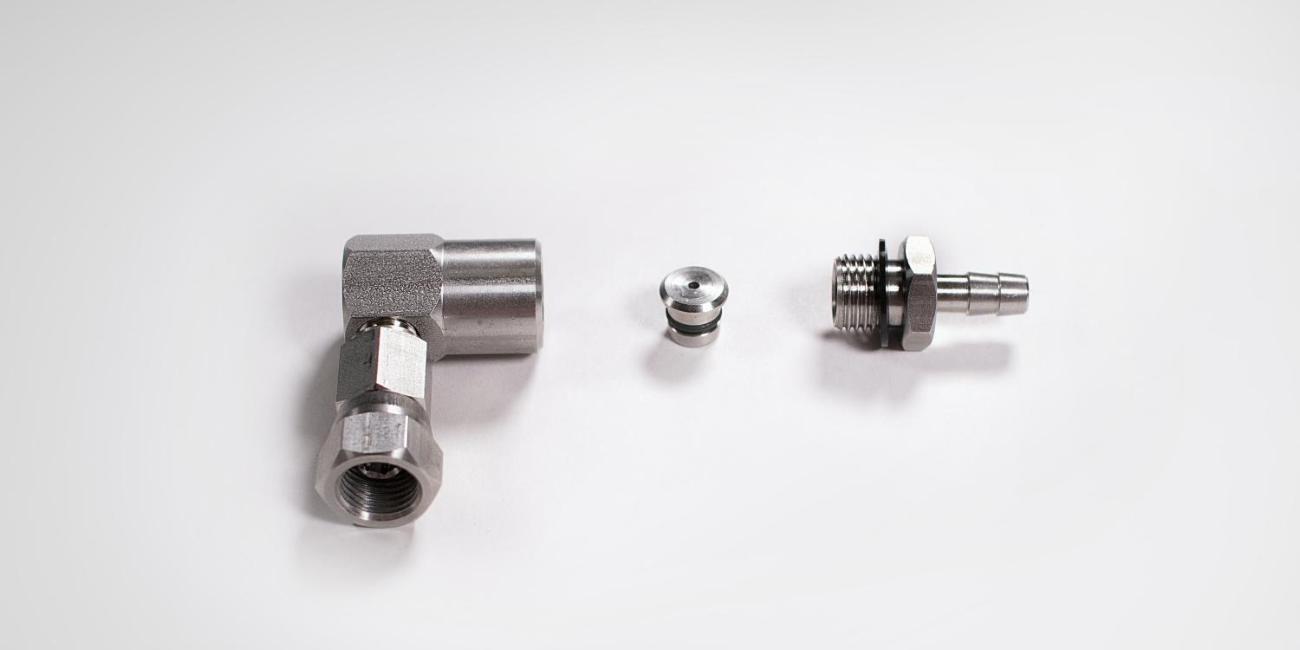

With stainless steel chemical limiter
We have a wide range of chemical limiters available with different orifice sizes and o-ring in Viton
| Orifice sizes | Dosage, guiding* |
| 0.40 mm | 0.8% |
| 0.50 mm | 1.3% |
| 0.55 mm | 1.5% |
| 0.60 mm | 2.0% |
| 0.70 mm | 2.6% |
| 0.80 mm | 3.5% |
| 0.90 mm | 4.4% |
| 1.00 mm | 4.8% |
| 1.10 mm | 5.3% |
| 1.20 mm | 6.3% |
| 1.30 mm | 7.0% |
| 1.40 mm | 7.3% |
| 1.50 mm | 7.8% |
| 1.60 mm | 8.1% |
| 1.70 mm | 10.0% |
| 1.80 mm | 11.0% |
| 1.90 mm | 12.0% |
*The concentration is dependent on many factors such as product temperature , viscosity, density, pressure conditions, lenght of hose, air pressure etc.
Consequently the above mentioned percentages in the tables are only guiding.
We recommend that dosage is adjusted by your chemical supplier.
